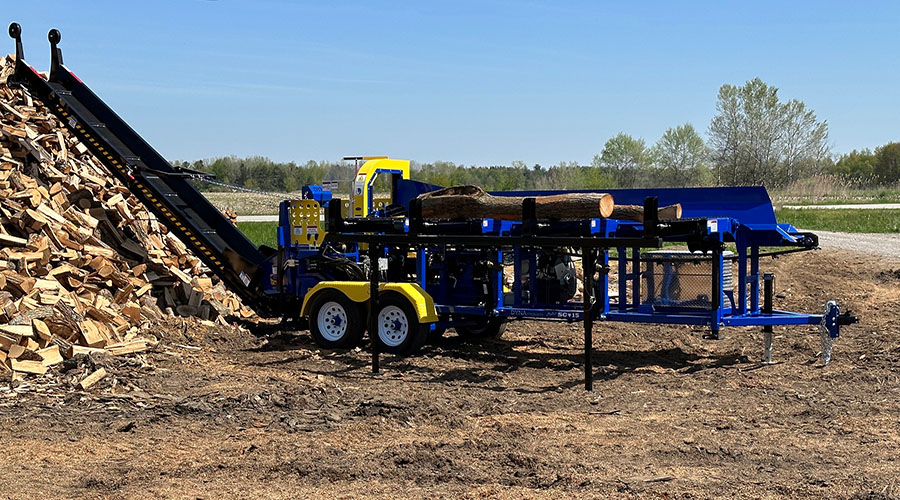

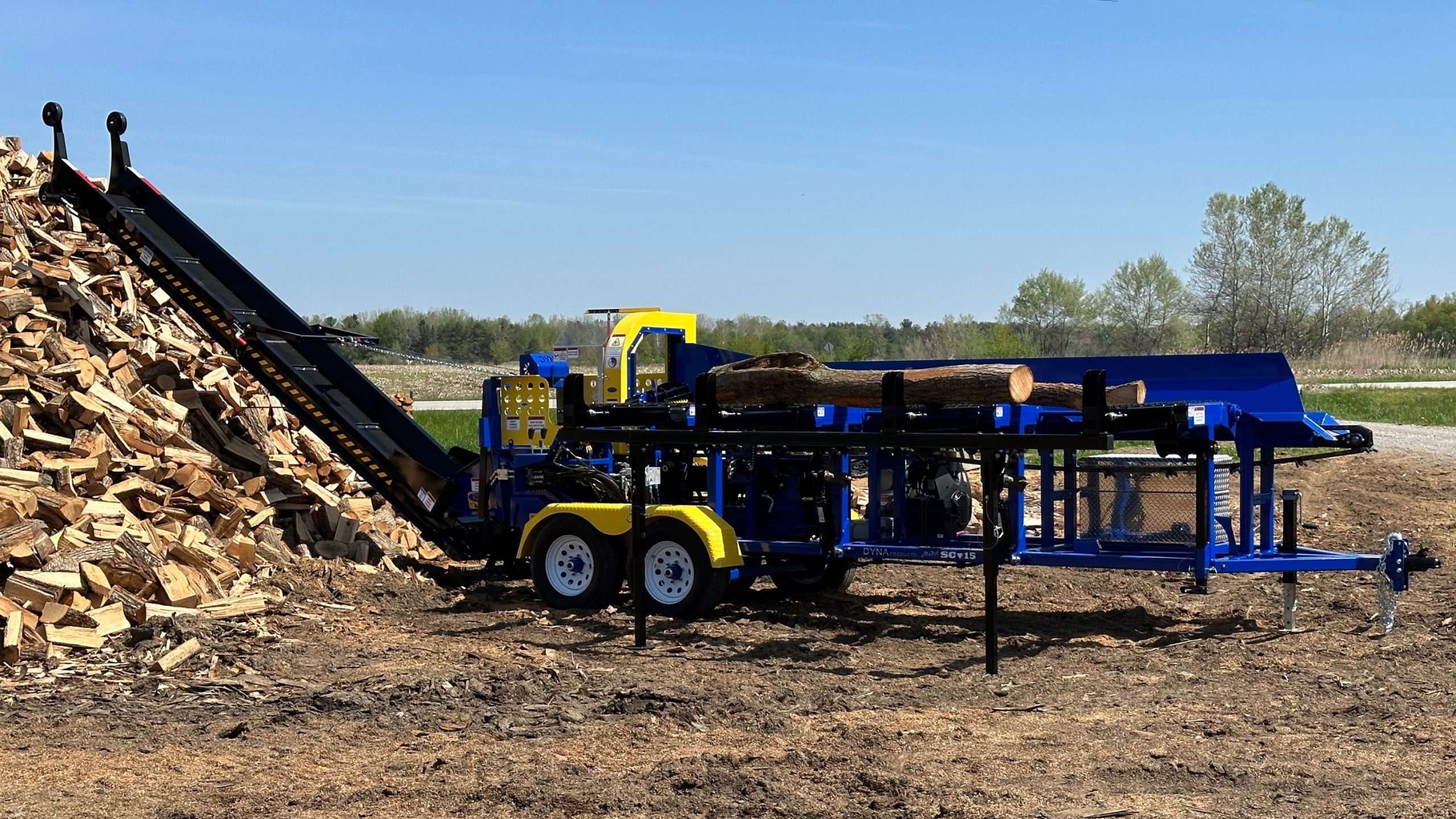

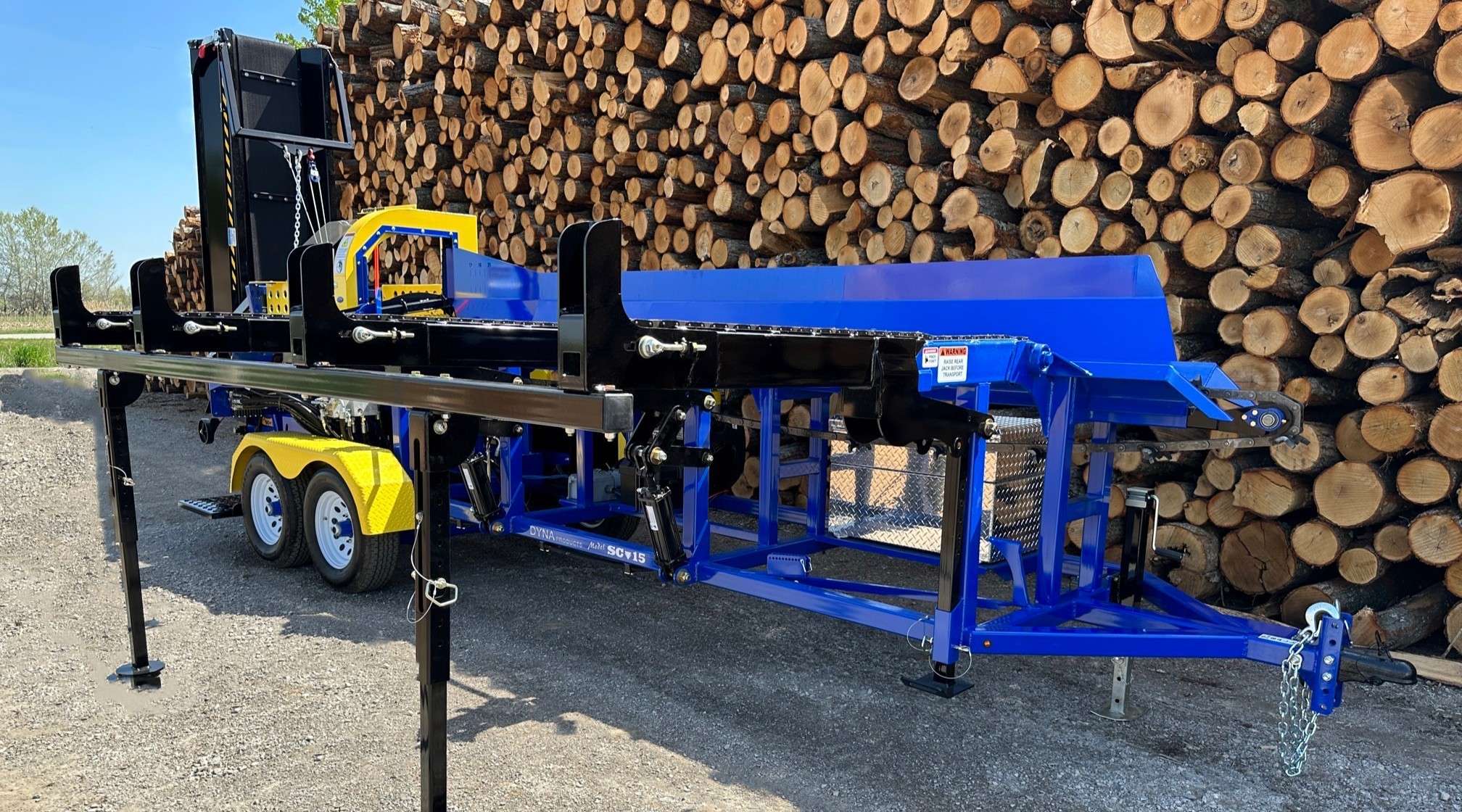

DYNA SC-15
Firewood Processor
The DYNA SC-15 Firewood Processor combines the industrial-size, high-output frame and log capacity like the DYNA SC-16, with the power and speed of a highly reliable and versatile DYNA SC-14. With the upgrades of the DYNA SC-15, you can still take on thousands of cords per year, without breaking the bank!
The DYNA SC-15 Firewood Processor combines the industrial-size, high-output frame and log capacity like the DYNA SC-16, with the power and speed of a highly reliable and versatile DYNA SC-14. With the upgrades of the DYNA SC-15, you can still take on thousands of cords per year, without breaking the bank!
The DYNA SC-15 Firewood Processor: Power and Efficiency Redefined Powered by our dependable standard gas 999cc 38 HP EFI Kohler engine, the DYNA SC-15 Firewood Processor boasts an extra-long 4.5″ x 26″ splitting cylinder, delivering an unparalleled capacity to effortlessly cut and split up to an impressive 3 full cords per hour. This remarkable combination of power and precision ensures unparalleled productivity. With a specialized focus on handling substantial loads, the DYNA SC-15 features a commendable 22-inch maximum log diameter rating. Moreover, the accommodating live deck accommodates logs extending up to 16 feet in length, granting you the flexibility to manage various log sizes with ease. Experience streamlined processing with the integrated 16-foot Conveyor, an inclusive addition designed to optimize your workflow at no extra expense. This feature enables seamless processing directly into your dump trailer, dump truck, or aids in the creation of substantial firewood stockpiles – an asset that enhances your operational versatility.
Simplicity meets efficiency with the SC-15 Firewood Processor, providing an intuitive operational experience that minimizes complexities. Boasting a streamlined design, this machine is tailor-made for ease of use, ensuring that even newcomers can quickly become proficient operators. Experience the blend of operational simplicity and transport versatility with the SC-15 Firewood Processor. From intuitive controls to seamless towing, this machine is your dependable partner in achieving optimum results, whether at your wood yard, on the field, or in expanding your service offerings through rental ventures.
Log Diameter | 16 inch (22 inch Max) |
---|---|
Log Length | 22 foot |
Power Options | 38 HP EFI Kohler Gas 40 HP Tier 4 CAT Diesel |
Transport Dimensions | W: 84 inch L: 321 inch H: 130 inch Weight:9060 lbs |
Splitting Cycle Time | 6 seconds |
Log Loading | Hydraulic Deck Lifter Standard |
Maximum Finished Cut Piece | 24 inch |
Splitting Options | 4-way Standard, 6-way Optional, 8-way Optional (12″ Max Diameter) |
Saw Bar and Chain | 25 inch Harvester Bar (752HSFN104) 404 Harvester Saw Chain (18HX089E) |
Hydraulic Pump Flow | 30 gallons per minute |
|
-
Ergonomic Two Joysticks Hydraulic Controls and a Splitter Lever
-
IP67 rated electronic and engine compartment (2019 and up models)
-
Automatic crooked log in-feed correction (2019 and up models)
-
Heavy gauge steel hinged engine cover (2019 and up models)
-

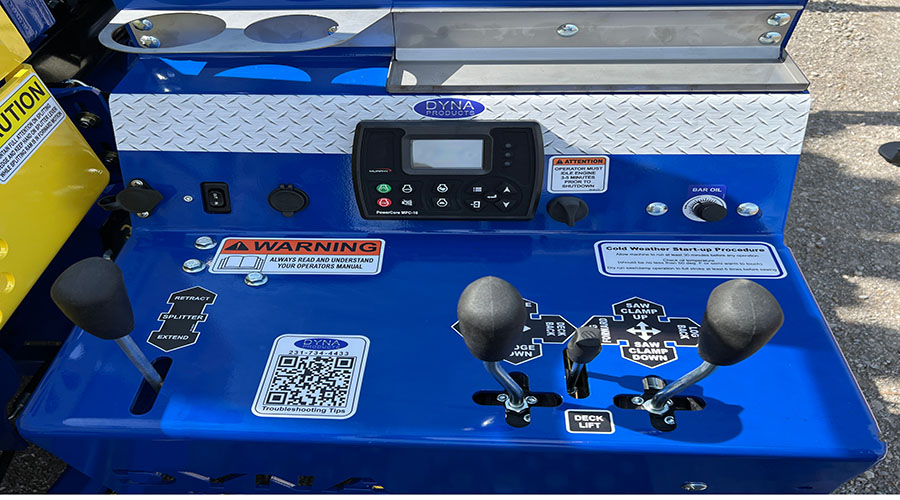

LCD easy to read control panel(2019 and up models)
-
5 Pin Light and 4 Wheel Brake Tow Package
-

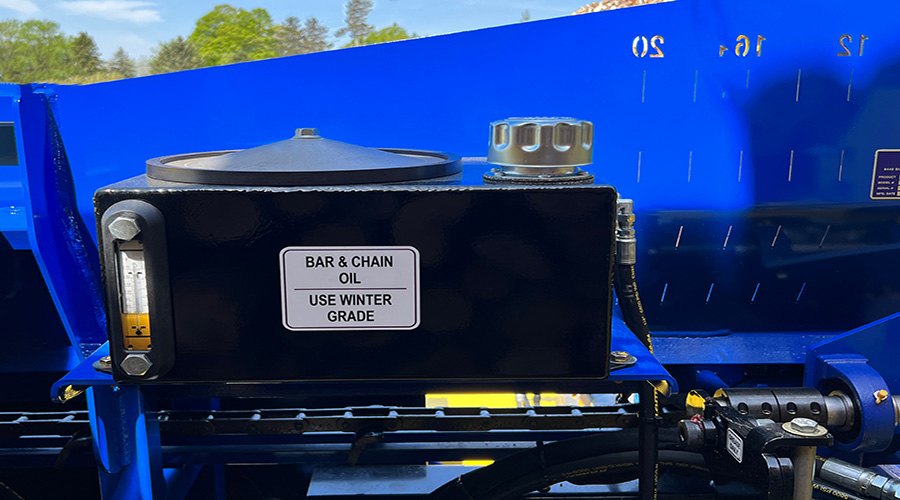

Automatic bar and chain oiler (2019 and up models)
-
Diamond Plate 30-gallon fuel tank / toolbox
-
Heavier gauge safety guards (2019 and up models)
-
Adjustable 4-way firewood splitting wedge
-
Adjustable height 16 Foot Belt Conveyor
-
2-5/16-inch Ball Hitch (2019 and up models)
-
Rolling log clamp (2019 and up models)
-
Sawdust Chute (2019 and up models)
-
Adjustable Hydraulic Wedge
-
Electric Conveyor Winch
-
Hydraulic Booster Valve
-
Hydraulic Deck Lifter
-
Tandem Torsion Axles
-
25-inch harvester bar
-
Operators work platform
-
-
Operator seat and footrest
-
6-way firewood splitting wedge
-
8-way firewood splitting wedge (8-way wedge limited to 12-inch diameter logs)
-
Extended warranty available
-
LED Work Lights
-
Canopy for Operator station
-
Bag attachment to collect debris
Standard features and Bold Improvements Included:
Optional upgrades:
This equipment comes with a 36 month limited warranty. If any product or part is proved to be defective 36 months from the date of purchase, by reason of improper workmanship and/or material we will replace, at our discretion, that part or product at no charge to you. To obtain warranty service, the customer must deliver the part or product to the Factory address at the customer’s expense. A copy of the original sales invoice is required when requesting warranty work.
The warranty is limited to 60 days on the saw bar and 1 year on the splitting wedge and the conveyor belt. The saw chain is not covered under this warranty. The CAT, Kohler, and Honda engines are warrantied separately according to their factory (typically 2-3 years).
The above warranty does not cover defects caused by modification, alteration, or repair of the part or product in question, by anyone other than the manufacturer, physical abuse to, or misuse of, the product or use or assembly thereof in any manner contrary to the accompanying instructions.
T1 YEAR LIMITED WARRANTY (SELECT FACTORY-SOLD USED FIREWOOD PROCESSORS)
Purchasing a used DYNA Firewood Processor from the Factory? It may come with a 1 year limited warranty. Speak with your sales representative for more details.
