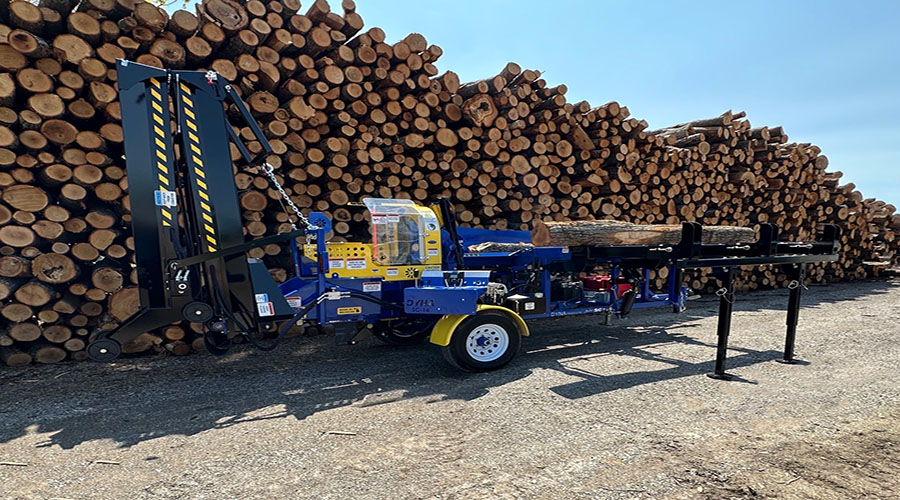

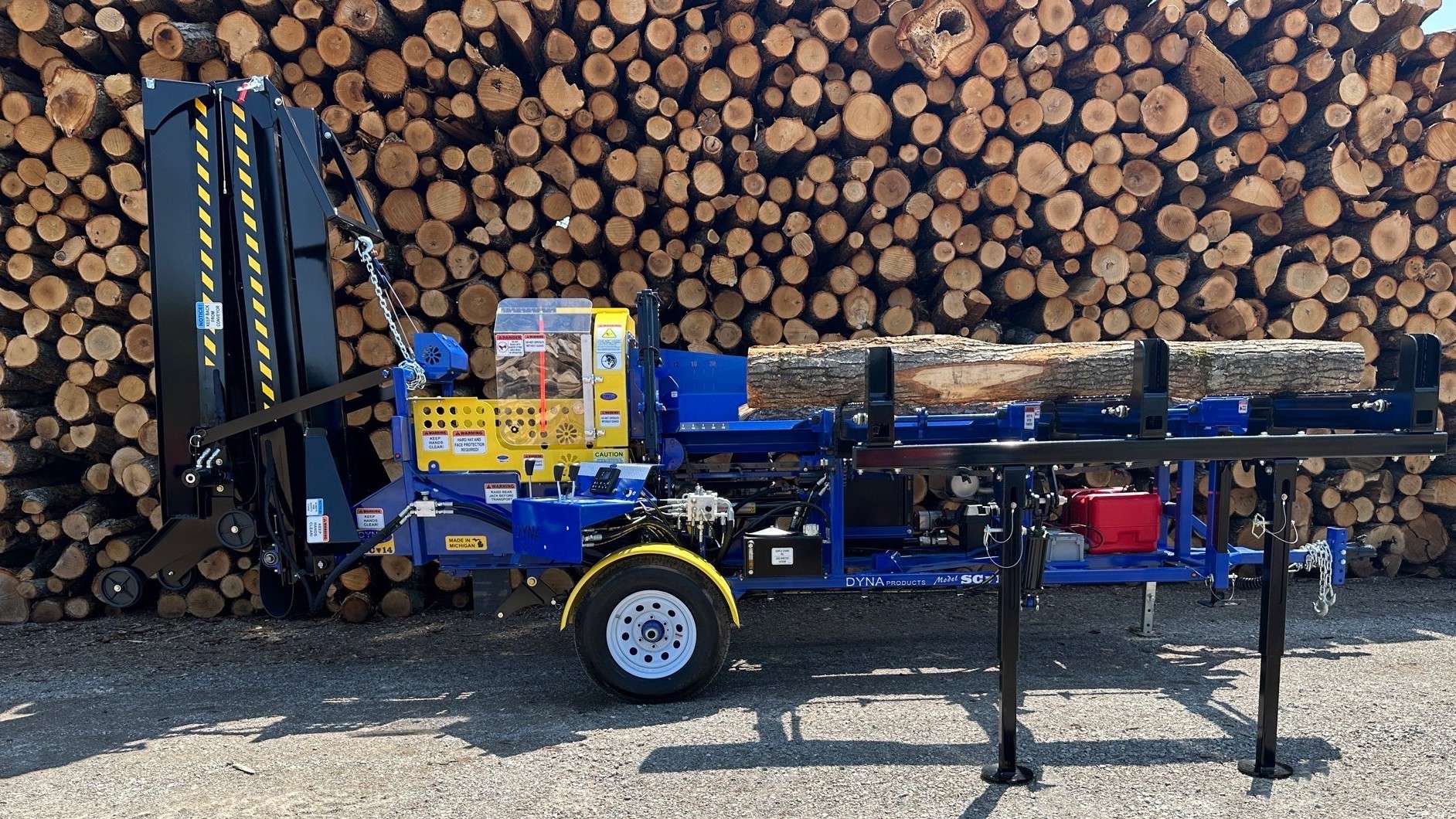

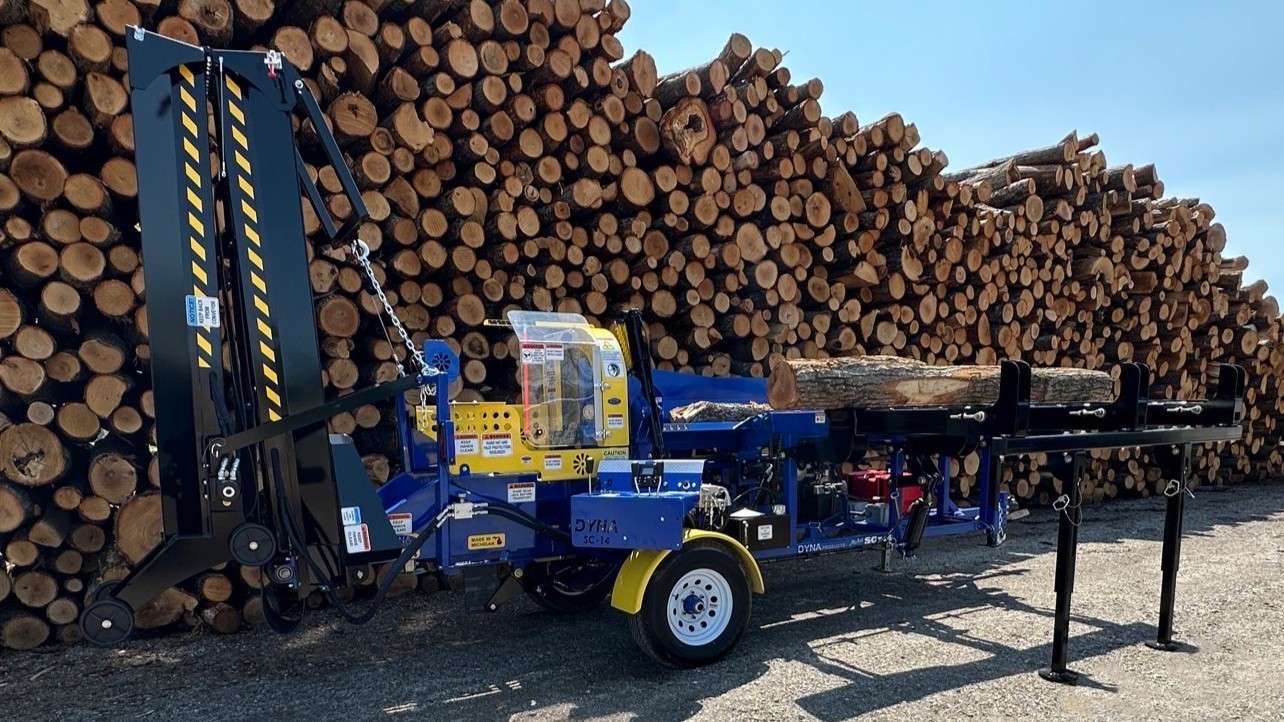

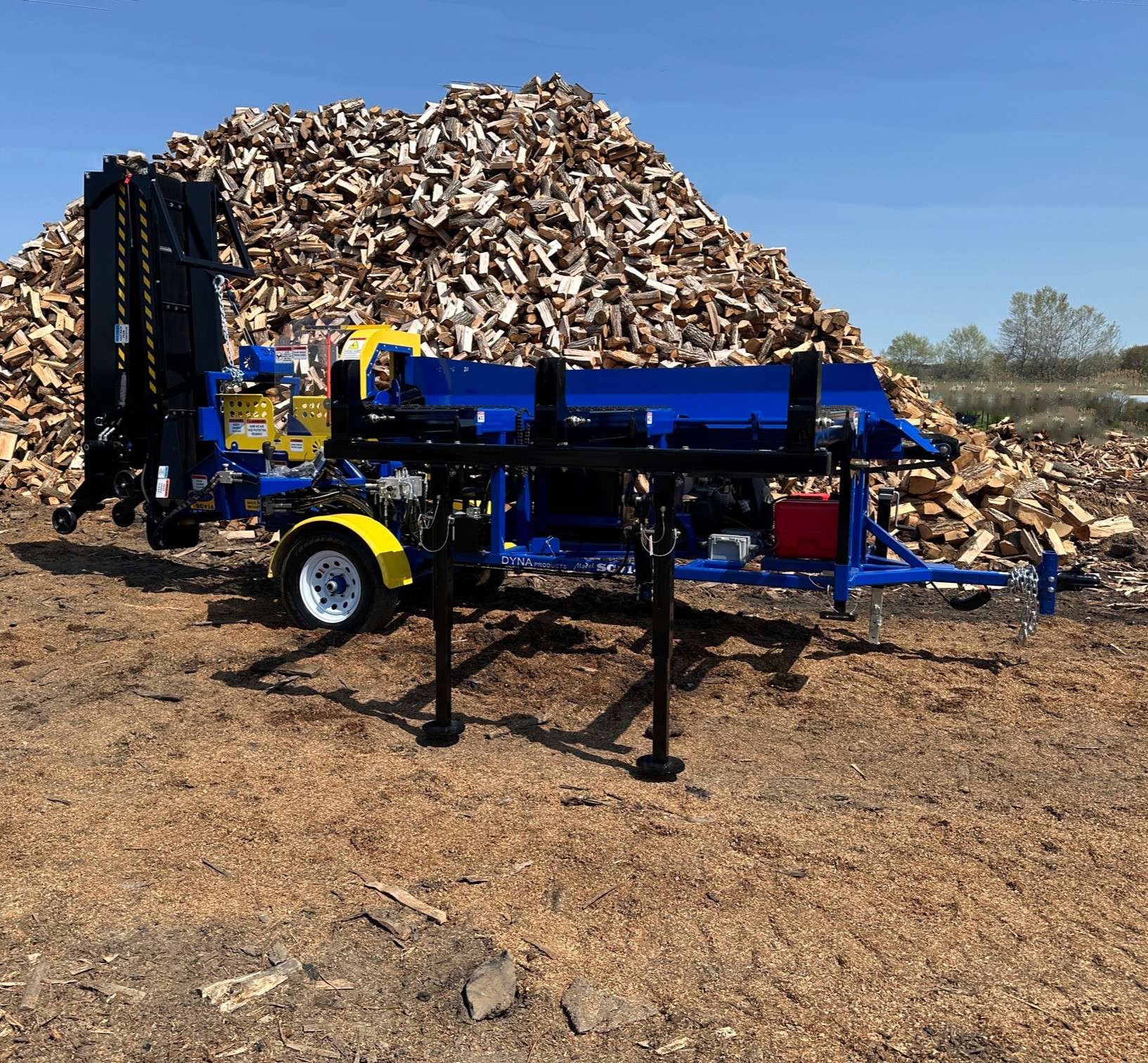

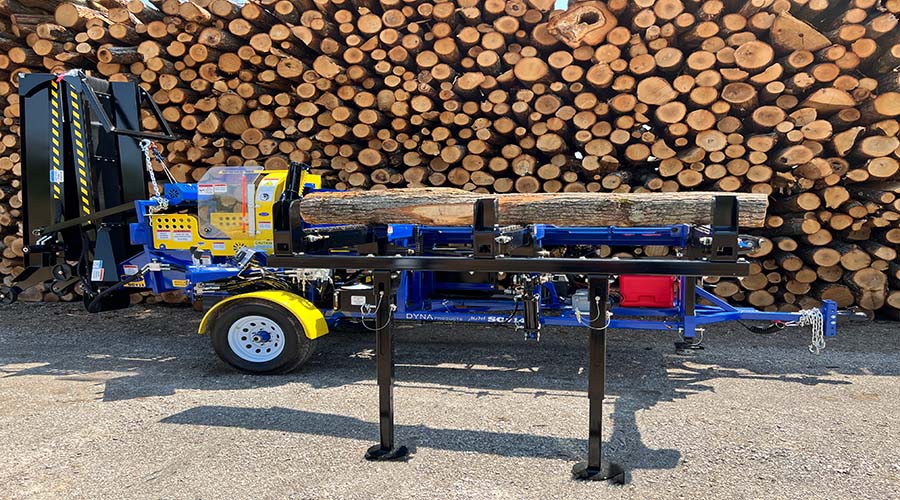

DYNA SC-14 Firewood Processor

Folded-Dyna Firewood Processor SC14

DYNA SC-14

Firewood Processor

The DYNA SC-14 Firewood Processor is our most economic processor, combining reliable, high-output performance, up to 2 cords per hour, with our standard gas 999cc 38 HP EFI. Kohler engine and options to meet your firewood processing needs. The SC-14 Firewood Processor is simple to operate, and easy to tow. With just three ergonomic joystick controls operating the live deck, in-feed trough, rolling log clamp, harvester saw, and splitting wedge are all controlled from an operator station. The SC-14 Firewood Processor can be transported easily between your wood yard, your work site, or to rental sites.

Starting at:

$54,900 USD






The DYNA SC-14 Firewood Processor – your optimal choice for cost-efficient processing. This remarkable processor seamlessly combines unwavering, high-yield performance – yielding up to 2 cords per hour – with the reliability of our standard gas 999cc 38 HP EFI Kohler engine. Engineered to cater to your firewood processing requirements, the SC-14 empowers you with versatile options. The SC-14 Firewood Processor, designed with user-friendliness in mind, ensures simplicity in operation while maintaining exceptional output. Towing this apparatus becomes a breeze, allowing you to effortlessly transport it from your wood yard to your designated work site or even rental locations. Experience operational efficiency like never before, courtesy of the intelligently designed ergonomic joystick controls. These controls grant you mastery over the live deck, in-feed trough, rolling log clamp, harvester saw, and splitting wedge – all managed from a singular operator station. Whether you’re seeking to streamline your wood yard processes, enhance on-site productivity, or expand your rental service offerings, the SC-14 Firewood Processor stands ready to accompany you on every step of the journey. Effortlessly adaptable and meticulously engineered, it’s the choice that delivers on performance, convenience, and mobility.

Whether you’re seeking to streamline your wood yard processes, enhance on-site productivity, or expand your rental service offerings, the SC-14 Firewood Processor stands ready to accompany you on every step of the journey. Effortlessly adaptable and meticulously engineered, it’s the choice that delivers on performance, convenience, and mobility.

PRODUCT SPECIFICATIONS:
Log Diameter 14 inch (18 inch Max)
Log Length 15 foot
Power Options 38 HP EFI. Kohler Gas, 43 HP Yanmar Diesel
Transport Dimensions W: 81 inch L: 261 inch H: 115 inch Weight: 5340 lbs
Splitting Cycle Time 7 seconds
Log Loading Hydraulic Deck Lifter Standard
Maximum Finished Cut Piece 22 inch
Splitting Options 4-way Standard, 6-way Optional, 8-way Optional (12″ Max Diameter)
Saw Bar and Chain 20 inch Harvester Bar 404 Harvester Saw Chain
Hydraulic Pump Flow  30 gallons per minute


Features:

    Standard features and Bold Improvements Included:

    • Adjustable height 14 Foot Belt Conveyor(Upgraded from 12 foot in 2020)

    • IP67 rated electronic and engine compartment (2019 and later Models)

    • Automatic crooked log in-feed correction (2019 and later Models)

    • Heavy gauge steel hinged engine cover (2019 and later Models)

    • LCD easy to read control panel(2019 and later Models)

    • Ergonomic Two Joysticks Hydraulic Controls and a Splitter Lever

    • Mechanical bar and chain oiler(2020 and later Models)

    • Heavier gauge safety guards (2019 and later Models)

    • 4-inch x 24-inch firewood splitting hydraulic cylinder

    • Electric Conveyor Winch (2019 and later Models)

    • 2-5/16-inch Ball Hitch (2019 and later Models)

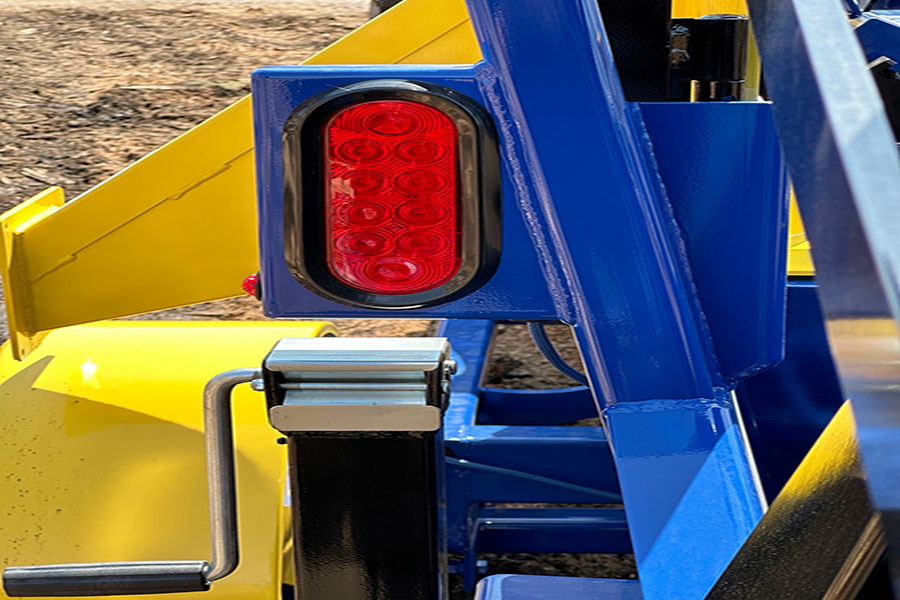

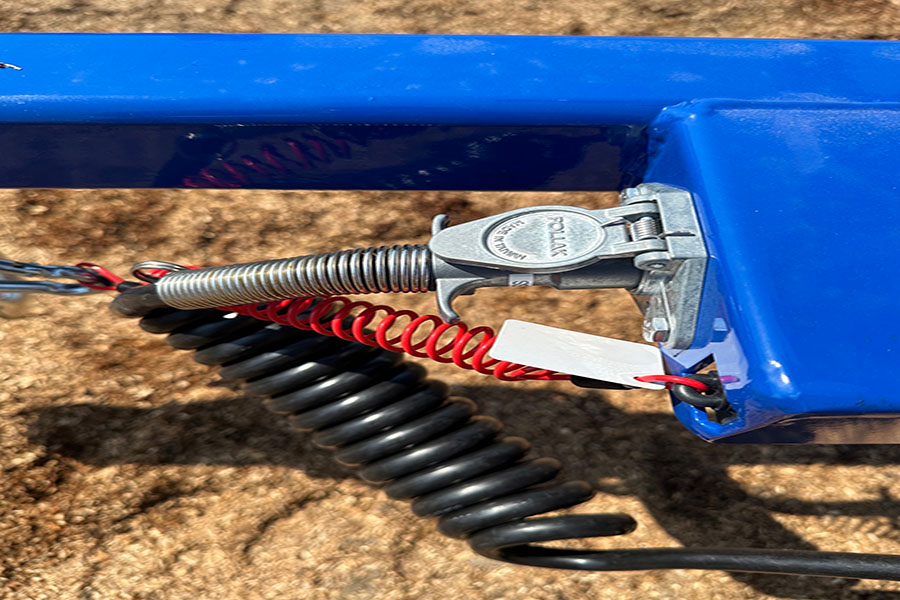

    • 5 Pin Light and 4 Wheel Brake Tow Package

    • Hydraulic Booster Valve (Standard in 2020)

    • Rolling log clamp (2019 and later Models)

    • Hydraulic Deck Lifter (Standard in 2020)

    • Sawdust Chute (2019 and later Models)

    • Adjustable 4-way Hydraulic Wedge

    • 38 HP EFI. Kohler gas engine

    • Single Torsion Axle

    • 20 inch harvester bar



    Optional upgrades:

    • Frame extensions which allow for up to 20 foot log lengths

    • Extra live deck arm

    • 4-1/2-inch x 24-inch hydraulic cylinder

    • 6-way firewood splitting wedge

    • 8-way firewood splitting wedge

    • Automatic bar and chain oiler

    • Operator seat and footrest

    • Diamond Plate 30-gallon fuel tank / toolbox

    • LED Work Lights





36 MONTH LIMITED WARRANTY

This equipment comes with a 36 month limited warranty. If any product or part is proved to be defective 36 months from the date of purchase, by reason of improper workmanship and/or material we will replace, at our discretion, that part or product at no charge to you. To obtain warranty service, the customer must deliver the part or product to the Factory address at the customer’s expense. A copy of the original sales invoice is required when requesting warranty work.

The warranty is limited to 60 days on the saw bar and 1 year on the splitting wedge and the conveyor belt. The saw chain is not covered under this warranty. The CAT, Kohler, and Honda engines are warrantied separately according to their factory (typically 2-3 years).

The above warranty does not cover defects caused by modification, alteration, or repair of the part or product in question, by anyone other than the manufacturer, physical abuse to, or misuse of, the product or use or assembly thereof in any manner contrary to the accompanying instructions.

T1 YEAR LIMITED WARRANTY (SELECT FACTORY-SOLD USED FIREWOOD PROCESSORS)

Purchasing a used DYNA Firewood Processor from the Factory? It may come with a 1 year limited warranty. Speak with your sales representative for more details.
