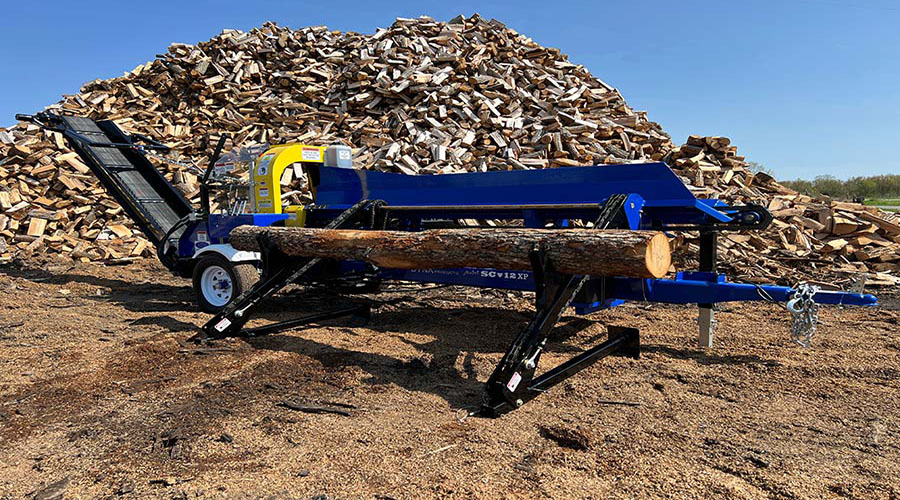

DYNA SC-12XP Firewood Processor
The DYNA SC-12XP Firewood Processor, an exceptional upgrade from a conventional log splitter. Built with the same robust construction and design found in our larger models, the DYNA SC-12XP offers an accessible entry point into the world of firewood processing at an affordable price. Capable of handling 10-foot logs with diameters of up to 15 inches, the SC-12XP Firewood Processor boasts a host of features that make it a reliable and efficient choice.

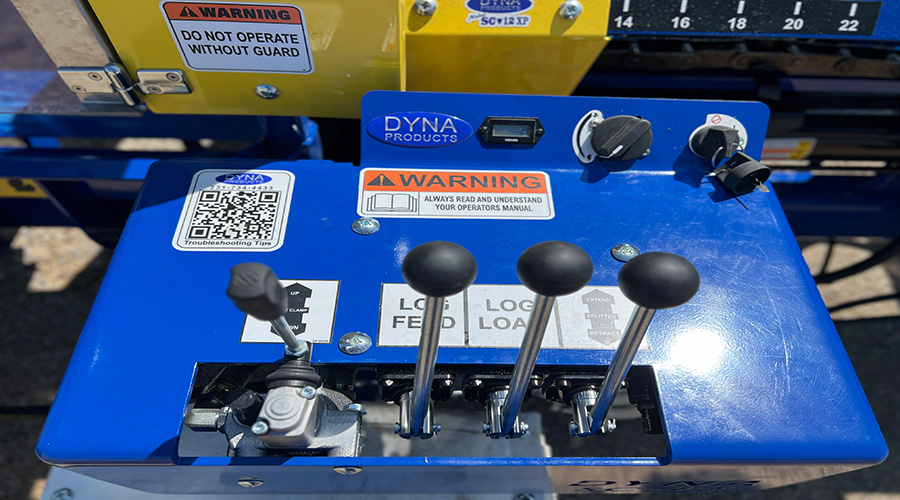

Experience a new dimension of speed and simplicity with the SC-12XP Firewood Processor. Swift in setup and effortless in operation, this exceptional machine embodies optimal performance. Fueling its efficiency is a robust 20 HP Honda motor, recognized for its unwavering reliability. Seamlessly translating power into results, the SC-12XP efficiently processes an entire cord of firewood per hour, ensuring a continuous and seamless workflow. Driven by a heavy-duty 18-inch harvester bar, the hydraulic saw motor excels in swift and precise cutting, enabling you to tackle logs with exceptional speed. Enhanced productivity is further complemented by the optional 10-ft conveyor, elevating your firewood processing experience. Moreover, the SC-12XP is equipped with a standard 4-way wedge, with an optional 6-way fixed wedge available for expanded versatility, empowering you to tailor your output to meet specific demands. Streamlining the process, logs are seamlessly loaded into the machine and effortlessly advanced into the cutting position through user-friendly controls. With a simple engagement of the saw bar and clamp by the operator, the hydraulic saw motor initiates automatically, minimizing manual intervention and optimizing operational fluidity.
The SC-12XP Firewood Processor stands as a testament to uncompromising performance, engineered to set new benchmarks in firewood processing. Its quick setup, intuitive operation, and incorporation of cutting-edge features exemplify its dedication to enhancing your firewood production endeavors.
PRODUCT SPECIFICATIONS:
Log Diameter | 12 inch (15 inch Max) |
---|---|
Log Length | 15 foot |
Power Options | 20 HP Honda Gas (electric start) |
Transport Dimensions | W: 59 inch L: 205 inch H:136 inch Weight: 3220 lbs |
Splitting Cycle Time | 7.5 seconds |

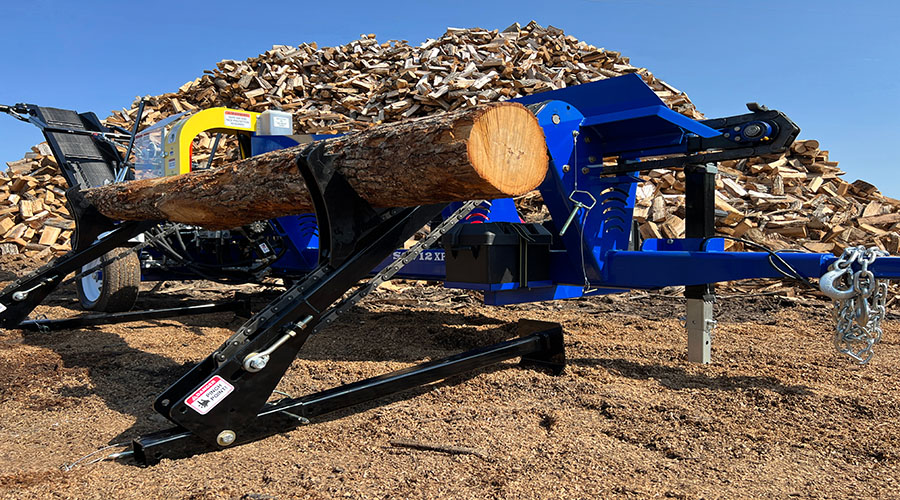

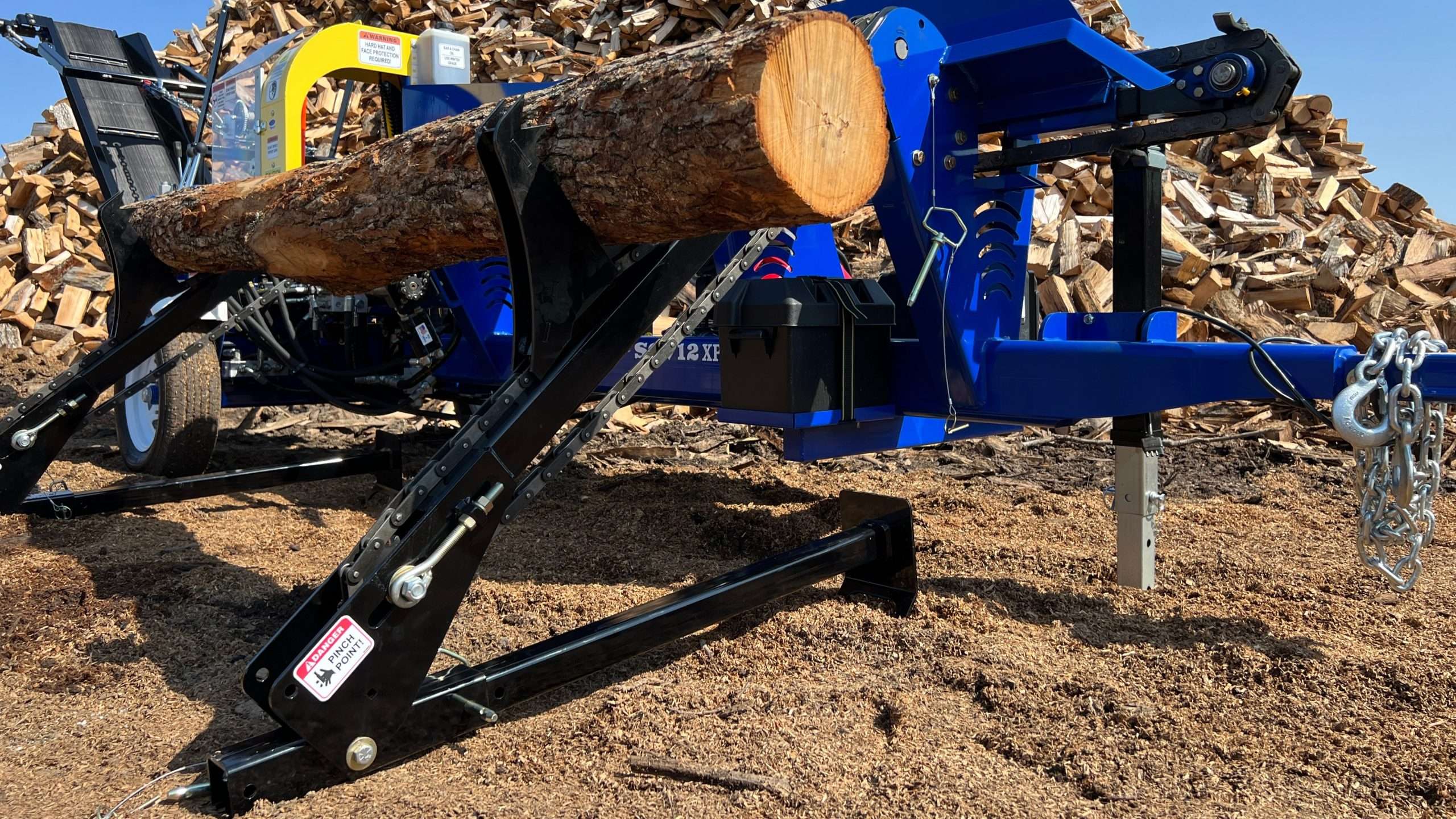

Log Loading | Hydraulic Log Lift |
Maximum Finished Cut Piece | 22 inch |
Splitting Options | 4-way Standard, 6-way Optional |
Saw Bar and Chain | 18 inch Harvester Bar 404 Harvester Saw Chain |
Hydraulic Pump Flow | 17 gallons per minute |
Features:
Standard features and Bold Improvements Included:
-
-
-
20 HP Honda gasoline engine
-
Hydraulic saw and log clamp
-
4-way firewood splitting wedge
-
2 5/16 inch Ball Hitch
-
-
-
-
-
10 Foot belt conveyor
-
6-way firewood splitting wedge
-
Frame extensions which allow for longer 20 foot log lengths
-
Extra live deck arm
-
Hi-Lo Valve to decrease cycle time
-
-
36 MONTH LIMITED WARRANTY
This equipment comes with a 36 month limited warranty. If any product or part is proved to be defective 36 months from the date of purchase, by reason of improper workmanship and/or material we will replace, at our discretion, that part or product at no charge to you. To obtain warranty service, the customer must deliver the part or product to the Factory address at the customer’s expense. A copy of the original sales invoice is required when requesting warranty work.
The warranty is limited to 60 days on the saw bar and 1 year on the splitting wedge and the conveyor belt. The saw chain is not covered under this warranty. The CAT, Kohler, and Honda engines are warrantied separately according to their factory (typically 2-3 years).
The above warranty does not cover defects caused by modification, alteration, or repair of the part or product in question, by anyone other than the manufacturer, physical abuse to, or misuse of, the product or use or assembly thereof in any manner contrary to the accompanying instructions.
T1 YEAR LIMITED WARRANTY (SELECT FACTORY-SOLD USED FIREWOOD PROCESSORS)
Purchasing a used DYNA Firewood Processor from the Factory? It may come with a 1 year limited warranty. Speak with your sales representative for more details.
